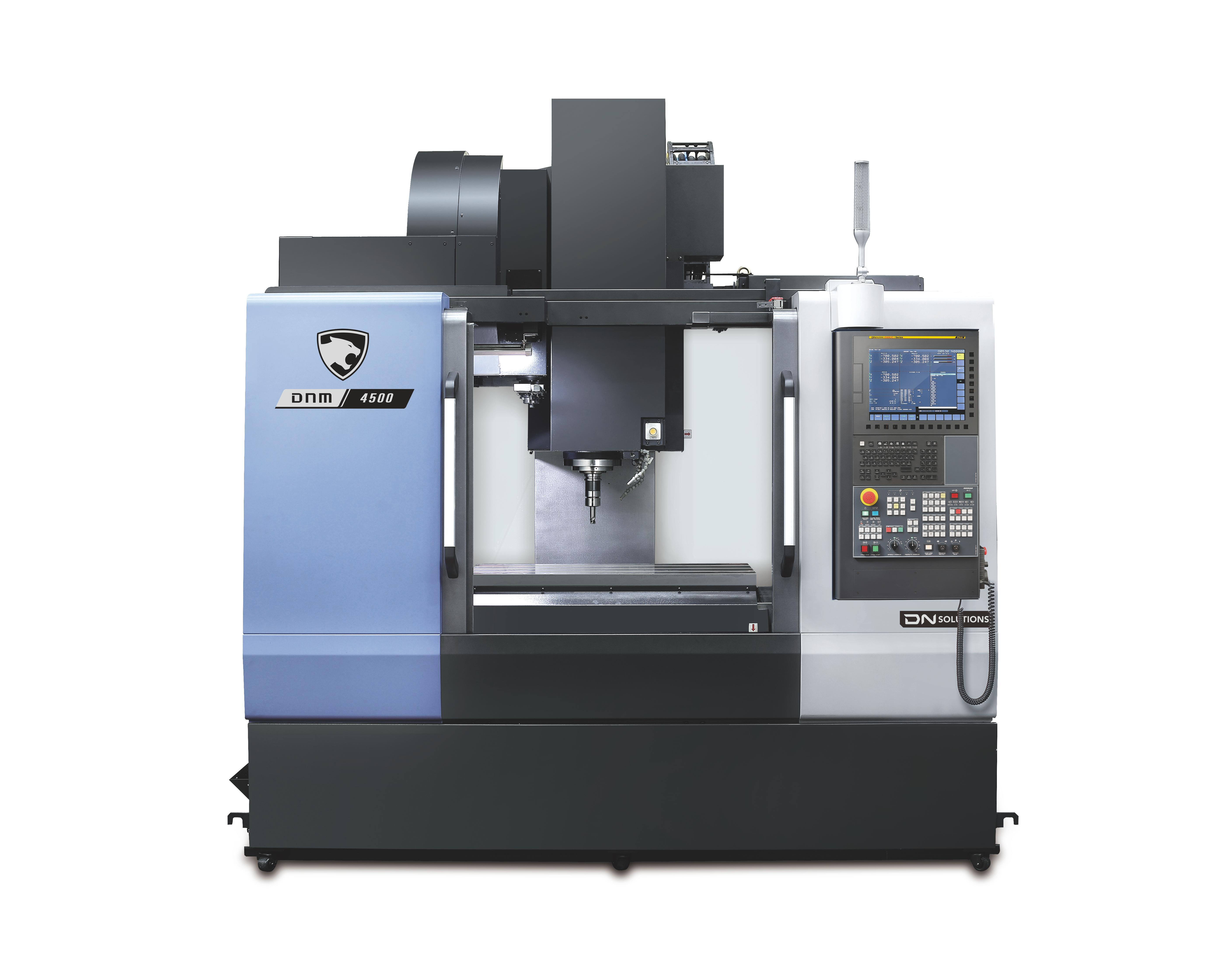

    DNM 4500 Series

    GLOBAL STANDARD VERTICAL MACHINING CENTER

    Highlights

    • Travels - X Axis Travel distance (mm): 910
    • Travels - Y Axis Travel distance (mm): 450
    • Travels - Z Axis Travel distance (mm): 510

    Compatible Control System

      Fanuc

    Travels

    Travels - X Axis Travel distance (mm) 910
    Travels - Y Axis Travel distance (mm) 450
    Travels - Z Axis Travel distance (mm) 510
    Travels - Z Axis Rapid Traverse (m/min) 30

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36

    Table

    Table Length (mm) 1050
    Table Width (mm) 450
    Max. Workpiece weight (kg) 600

    Workpiece capacity

    Max. Workpiece Height (mm) 590
    Max. Workpiece weight (kg) 600

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 8000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 117.8
    Tool Taper (ISO)

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 2160
    Height (mm) 2985
    Width (mm) 2701
    Weight (kg) 5500
      Name Download File type
    DNM 4500 Series
    		DNM series .pdf 4753 KB
    		.pdf
