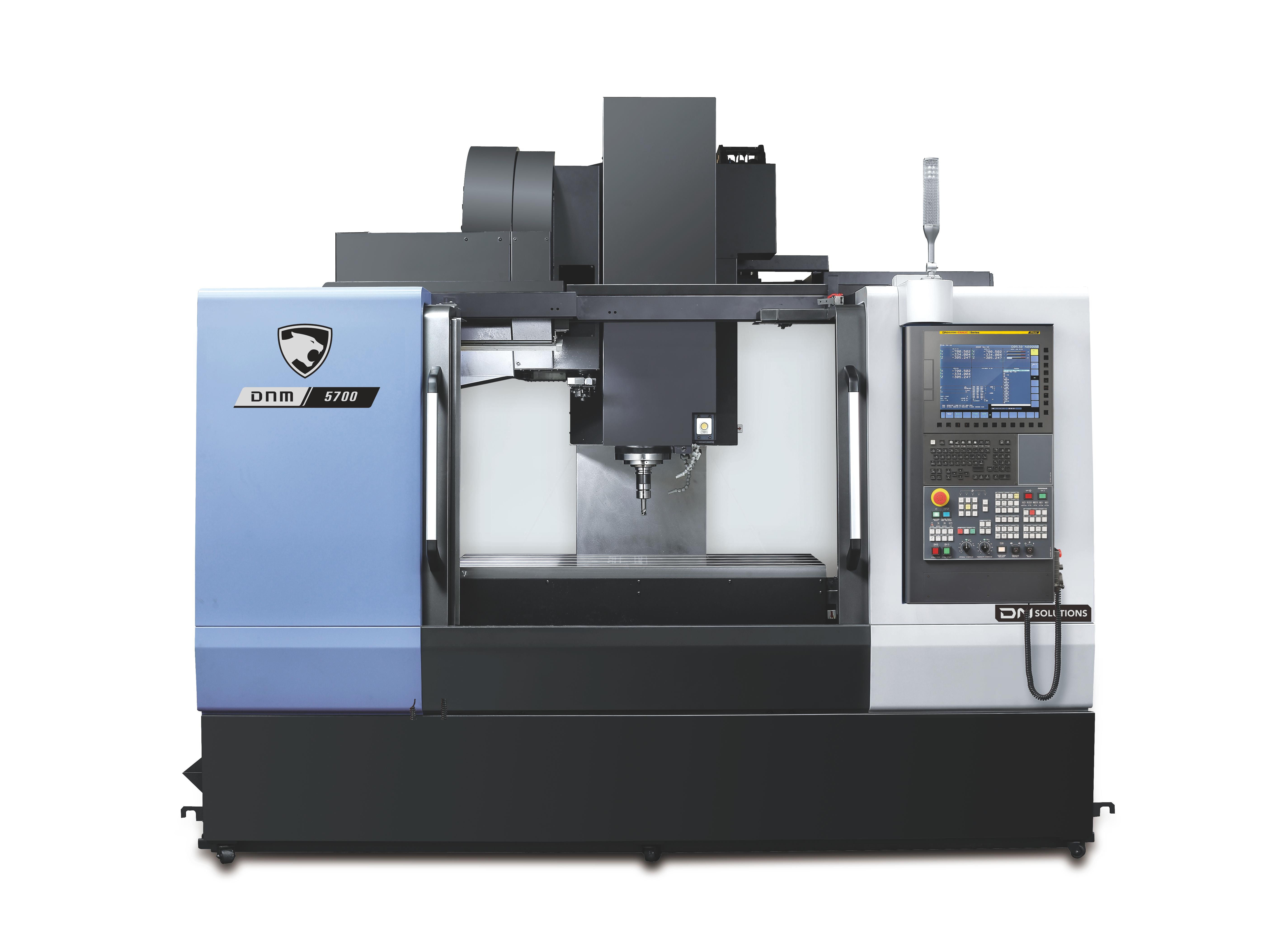

    DNM 5700 Series

    GLOBAL STANDARD VERTICAL MACHINING CENTER

    Highlights

    • Travels - X Axis Travel distance (mm): 1300
    • Travels - Y Axis Travel distance (mm): 570
    • Travels - Z Axis Travel distance (mm): 510

    Compatible Control System

      Fanuc

    Travels

    Travels - X Axis Travel distance (mm) 1300
    Travels - Y Axis Travel distance (mm) 570
    Travels - Z Axis Travel distance (mm) 510
    Travels - Z Axis Rapid Traverse (m/min) 30

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36

    Table

    Table Length (mm) 1500
    Table Width (mm) 570
    Max. Workpiece weight (kg) 1000

    Workpiece capacity

    Max. Workpiece Height (mm) 590
    Max. Workpiece weight (kg) 1000

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 8000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 117.8
    Tool Taper (ISO)

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 2413
    Height (mm) 2985
    Width (mm) 3350
    Weight (kg) 7000
      Name Download File type
    DNM 5700 Series
    		DNM series .pdf 4753 KB
    		.pdf
