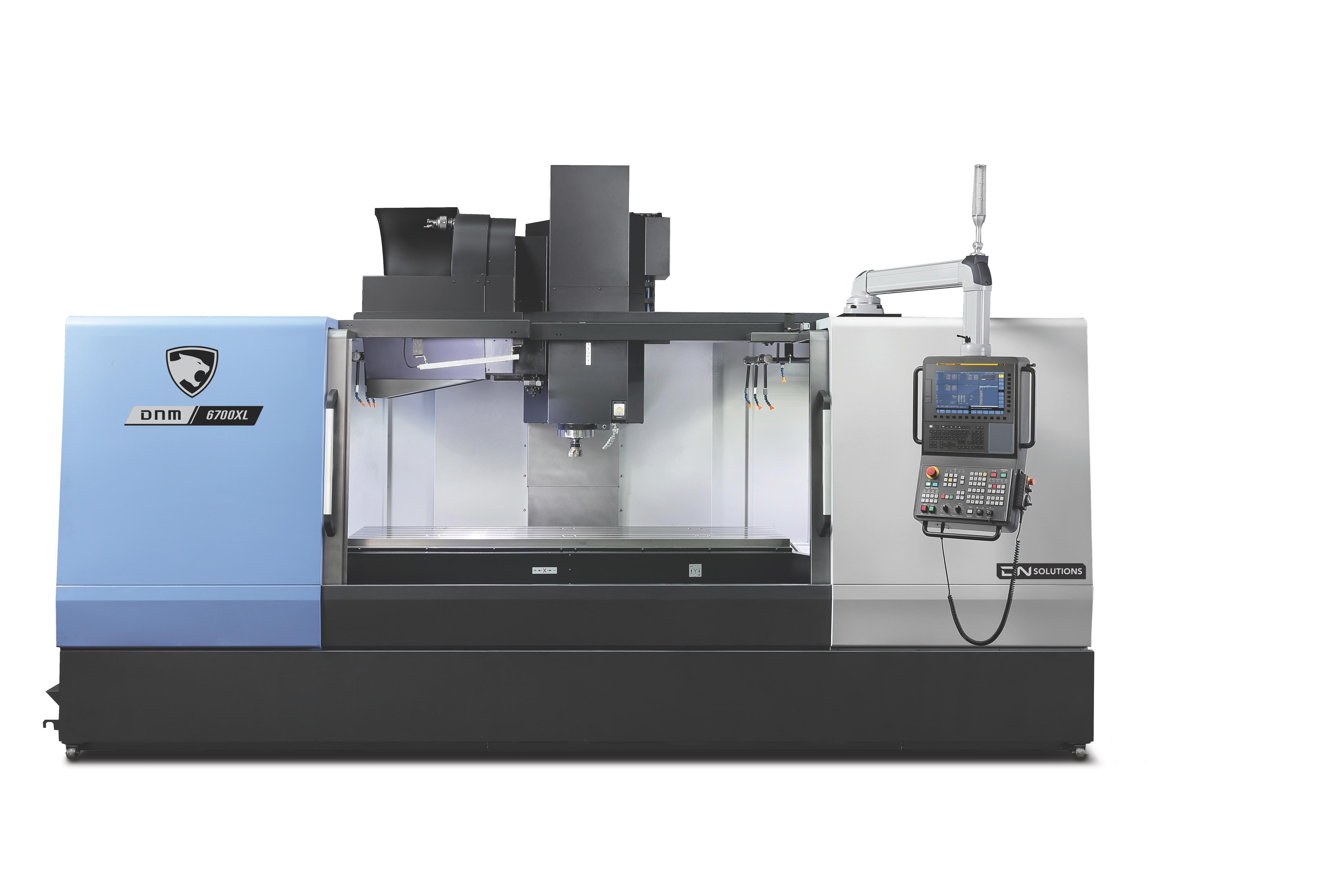

    DNM 6700 Series

    GLOBAL STANDARD VERTICAL MACHINING CENTER

    Highlights

    • Travels - X Axis Travel distance (mm): 1500
    • Travels - Y Axis Travel distance (mm): 670
    • Travels - Z Axis Travel distance (mm): 625

    Compatible Control System

      Fanuc

    Travels

    Travels - X Axis Travel distance (mm) 1500
    Travels - Y Axis Travel distance (mm) 670
    Travels - Z Axis Travel distance (mm) 625
    Travels - Z Axis Rapid Traverse (m/min) 30

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36

    Table

    Table Length (mm) 1600
    Table Width (mm) 670
    Max. Workpiece weight (kg) 1300

    Workpiece capacity

    Max. Workpiece Height (mm) 700
    Max. Workpiece weight (kg) 1300

    Tool storage capacity

    Machining center - No. of tool station 30

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 117.8
    Tool Taper (ISO)

    Turret

    Turret - No. of tool station 30

    Dimensions

    Length (mm) 2597
    Height (mm) 3120
    Width (mm) 3650
    Weight (kg) 9000
      Name Download File type
    DNM 6700 Series
    		DNM series .pdf 4753 KB
    		.pdf
